SY10E111A, SY100E111A, 1:9 DIFFERENTIAL CLOCK DRIVER

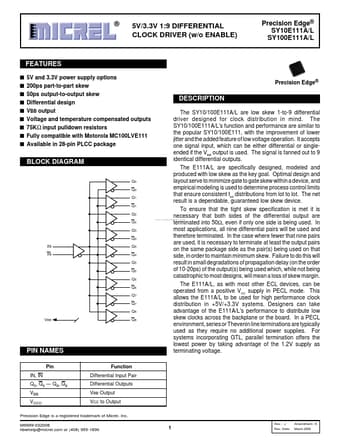

Micrel, Inc.5V/3.3V 1:9 DIFFERENTIAL CLOCK DRIVER (w/o ENABLE) Precison Edge® SY10E111A/L Precision Edge® SY100E111A/L SY10E111A/L SY100E111A/L F.
The SY10/100E111A/L are low skew 1-to-9 differential driver designed for clock distribution in mind.

SY100E111A_MicrelSemiconductor.pdf

SY10E111A Datasheet Preview — This datasheet PDF includes multiple part numbers: SY10E111A, SY100E111A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SY10E111A, SY100E111A

Manufacturer:

Micrel Semiconductor

File Size:

102.04 KB

Description:

1:9 DIFFERENTIAL CLOCK DRIVER

Note:

This datasheet PDF includes multiple part numbers: SY10E111A, SY100E111A.
Please refer to the document for exact specifications by model.

Features

* s s s s s s s s s 5V and 3.3V power supply options 200ps part-to-part skew 50ps output-to-output skew Differential design VBB output Voltage and temperature compensated outputs 75KΩ input pulldown resistors Fully compatible with Motorola MC100LVE111 Available in 28-pin PLCC package Precision Edge®

Applications

* all nine differential pairs will be used and therefore terminated. In the case where fewer that nine pairs are used, it is necessary to terminate at least the output pairs on the same package side as the pair(s) being used on that side, in order to maintain minimum skew. Failure to do this will res
