SY10E104, SY100E104, QUINT 2-INPUT AND/NAND GATE

Micrel, Inc.QUINT 2-INPUT AND/NAND GATE SY10E104 SY1S0YE10100E4104 SY100E104 .

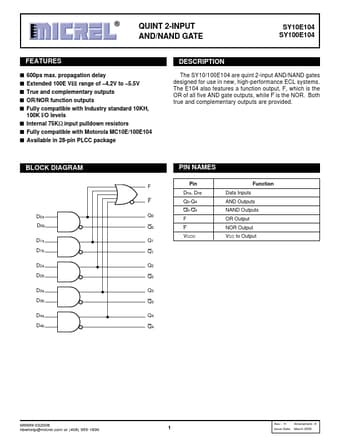

The SY10/100E104 are quint 2-input AND/NAND gates designed for use in new, high-performance ECL systems.

SY100E104_MicrelSemiconductor.pdf

SY10E104 Datasheet Preview — This datasheet PDF includes multiple part numbers: SY10E104, SY100E104. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SY10E104, SY100E104

Manufacturer:

Micrel Semiconductor

File Size:

60.58 KB

Description:

QUINT 2-INPUT AND/NAND GATE

Note:

This datasheet PDF includes multiple part numbers: SY10E104, SY100E104.
Please refer to the document for exact specifications by model.

Features

* s 600ps max. propagation delay s Extended 100E VEE range of
* 4.2V to
* 5.5V s True and complementary outputs s OR/NOR function outputs s Fully compatible with Industry standard 10KH, 100K I/O levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E10
