SY100EL16VS - 5V/3.3V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER

Description

The SY100EL16VS are differential receivers with variable output swing.

The devices are functionally equivalent to the EL16V devices with an input that control the amplitude of the outputs.

The operational range of the EL16VS control input is from VBB (max.

Features

  • s 3.3V and 5V power supply options s High bandwidth output transitions s Internal 75KΩ pull-down resistors on inputs s Functionally equivalent to SY100EL16V with variable output swing s Improved output waveform characteristics s Available in 8-pin SOIC and 8-pin (3mm) MSOP SY100EL16VS.

📥 Download Datasheet

Datasheet Details

Part number SY100EL16VS
Manufacturer Micrel Semiconductor
File Size 87.22 KB
Description 5V/3.3V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER
Datasheet download datasheet SY100EL16VS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SY100EL16VS 3.3V/5V Variable Output Swing Differential Receiver Microchip
SY100EL16V 5V/3.3V ECL Differential Receiver Microchip
SY100EL16S 5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER Synergy
SY100EL11V 5V/3.3V ECL 1:2 Differential Fanout Buffe Microchip
SY100EL29V 5V/3.3V Dual Differential Data and Clock D Flip-Flop Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
SY100EL16VA-VF ENHANCED DIFFERENTIAL RECEIVER
SY100EL16VO DUAL SUPPLY OCTAL ECL-TO-TTL
SY100EL1001 LASER DIODE DRIVER
SY100EL1003 LASER DIODE DRIVER
SY100EL11V 5V/3.3V 1:2 Differential Fanout Buffer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

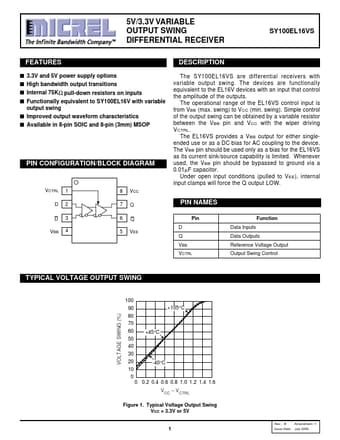

5V/3.3V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER FEATURES s 3.3V and 5V power supply options s High bandwidth output transitions s Internal 75KΩ pull-down resistors on inputs s Functionally equivalent to SY100EL16V with variable output swing s Improved output waveform characteristics s Available in 8-pin SOIC and 8-pin (3mm) MSOP SY100EL16VS DESCRIPTION The SY100EL16VS are differential receivers with variable output swing. The devices are functionally equivalent to the EL16V devices with an input that control the amplitude of the outputs. The operational range of the EL16VS control input is from VBB (max. swing) to VCC (min. swing). Simple control of the output swing can be obtained by a variable resistor between the VBB pin and VCC with the wiper driving VCTRL.
