MIC68200 - 2A Sequencing LDO

Micrel Semiconductor

The MIC68200 by Micrel Semiconductor is a 2A Sequencing LDO. Below is the official datasheet preview.

📥 Download Datasheet

MIC68200 2A Sequencing LDO by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC68200** 2A Sequencing LDO datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC68200
Manufacturer	Micrel Semiconductor
File Size	681.24 KB
Description	2A Sequencing LDO
Datasheet	MIC68200_MicrelSemiconductor.pdf

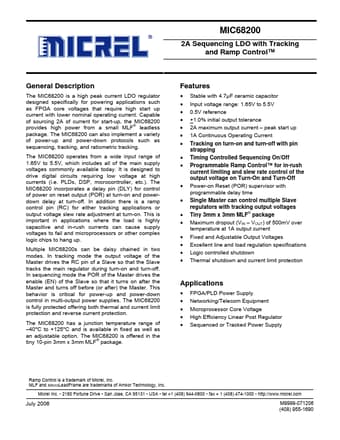

Additional preview pages of the MIC68200 datasheet.

MIC68200 Product details

Description

The MIC68200 is a high peak current LDO regulator designed specifically for powering applications such as FPGA core voltages that require high start up current with lower nominal operating current.

Features

Stable with 4.7µF ceramic capacitor Input voltage range: 1.65V to 5.5V 0.5V reference +1.0% initial output tolerance 2A maximum output current.
peak start up 1A Continuous Operating Current Tracking on turn-on and turn-off with pin strapping Timing Controlled Sequencing On/Off Programmable Ramp Control™ for in-rush curr.
