MIC6252 - IttyBitty GainBlock Amplifiers

Download the MIC6252 datasheet PDF. This datasheet also covers the MIC6251 variant, as both devices belong to the same ittybitty gainblock amplifiers family and are provided as variant models within a single manufacturer datasheet.

Description

The MIC6251 and MIC6252 are IttyBitty™ GainBlock™ amplifiers for use as follows: MIC6251 +2, +1,

The MIC6251 and MIC6252 amplifiers operate from 4V to 32V.

Both can use single or split supplies.

Features

  • 4V to 32V operation.
  • Small footprint package.
  • Internally compensated.
  • 2MHz bandwidth.
  • 6V/µs typical slew rate.
  • Short circuit protected.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MIC6251-MicrelSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MIC6252
Manufacturer Micrel Semiconductor
File Size 118.47 KB
Description IttyBitty GainBlock Amplifiers
Datasheet download datasheet MIC6252 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MIC61150 Low Input Voltage Single-Supply High-Current LDO MICREL
MIC61300 Low Input Voltage Single-Supply High-Current LDO MICREL
MIC69101 Single Supply VIN / LOW VIN / LOW VOUT / 1A LDO MICREL
MIC69103 Single Supply VIN / LOW VIN / LOW VOUT / 1A LDO MICREL
MIC69151 Single Supply VIN / LOW VIN / LOW VOUT / 1.5A LDO MICREL

Other Datasheets by Micrel Semiconductor

Part Number Description
MIC6251 IttyBitty GainBlock Amplifiers
MIC6211 IttyBitty Operational Amplifier Preliminary Information
MIC6270 IttyBitty Comparator Advance Information
MIC6315 Open-Drain uP Reset Circuit
MIC68200 2A Sequencing LDO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

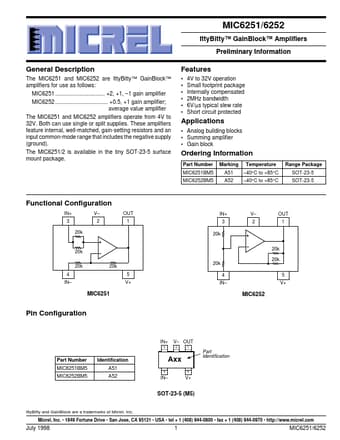

MIC6251/6252 Micrel MIC6251/6252 IttyBitty™ GainBlock™ Amplifiers Preliminary Information General Description The MIC6251 and MIC6252 are IttyBitty™ GainBlock™ amplifiers for use as follows: MIC6251 ................................ +2, +1, –1 gain amplifier MIC6252 .................................. +0.5, +1 gain amplifier; average value amplifier The MIC6251 and MIC6252 amplifiers operate from 4V to 32V. Both can use single or split supplies. These amplifiers feature internal, well-matched, gain-setting resistors and an input common-mode range that includes the negative supply (ground). The MIC6251/2 is available in the tiny SOT-23-5 surface mount package.
