MIC39152 - 1.5A Low-Voltage Low-Dropout Regulator

Product Overview

Micrel Semiconductor

Datasheet Details

Part number	MIC39152
Manufacturer	Micrel Semiconductor
File Size	304.14 KB
Description	1.5A Low-Voltage Low-Dropout Regulator
Datasheet	MIC39152 Datasheet
Note	This datasheet PDF includes multiple part numbers: MIC39152, MIC39150. Please refer to the document for exact specifications by model.

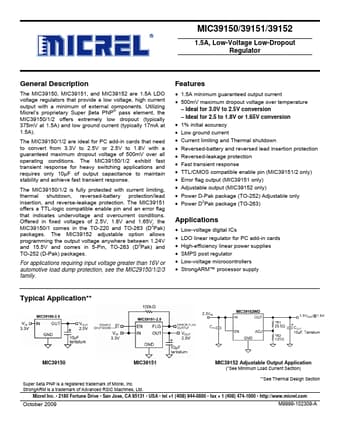

Additional preview pages of the MIC39152 datasheet.

Product details

Description

The MIC39150, MIC39151, and MIC39152 are 1.5A LDO voltage regulators that provide a low voltage, high current output with a minimum of external components.

Features

1.5A minimum guaranteed output current.
500mV maximum dropout voltage over temperature.
Ideal for 3.0V to 2.5V conversion.
Ideal for 2.5 to 1.8V or 1.65V conversion.
1% initial accuracy.
Low ground current.
Current limiting and Thermal shutdown.
Reversed-battery and reversed lead insertion protection.
Reversed-leakage protection.
Fast transient response.
TTL/CMOS compatible enable pin (MIC39151/2.
