MIC39150 - 1.5A Low-Voltage Low-Dropout Regulator

Product Overview

Micrel Semiconductor

Datasheet Details

Part number	MIC39150
Manufacturer	Micrel Semiconductor
File Size	304.14 KB
Description	1.5A Low-Voltage Low-Dropout Regulator
Datasheet	MIC39150 Datasheet

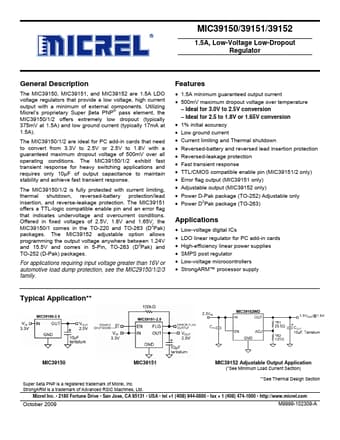

Additional preview pages of the MIC39150 datasheet.

Product details

Description

The MIC39150 and MIC39151 are 1.5A low-dropout linear voltage regulators that provide a low voltage, high current output with a minimum of external components.

Features

1.5A minimum guaranteed output current.
500mV maximum dropout voltage over temperature Ideal for 3.0V to 2.5V conversion Ideal for 2.5 to 1.8V conversion.
1% initial accuracy.
Low ground current.
Current limiting and Thermal shutdown.
Reversed-battery and reversed lead insertion protection.
Reversed-leakage protection.
Fast transient response.
TO-263 and TO-220 packaging.
TTL/CMOS compatible enable pin (MI.
