MIC2292 - High Frequency PWM White LED Drivers

Micrel Semiconductor

The MIC2292 by Micrel Semiconductor is a High Frequency PWM White LED Drivers. Below is the official datasheet preview.

📥 Download Datasheet

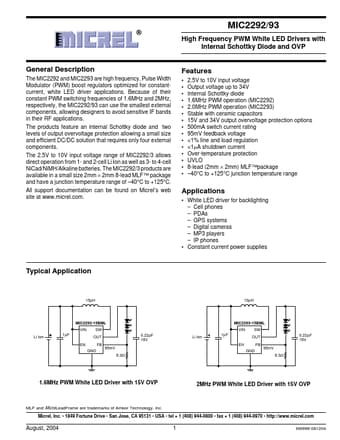

MIC2292 High Frequency PWM White LED Drivers by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2292** High Frequency PWM White LED Drivers datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2292
Manufacturer	Micrel Semiconductor
File Size	104.42 KB
Description	High Frequency PWM White LED Drivers
Datasheet	MIC2292_MicrelSemiconductor.pdf
Additional preview pages of the MIC2292 datasheet.

MIC2292 Product details

Description

The MIC2292 and MIC2293 are high frequency, Pulse Width Modulator (PWM) boost regulators optimized for constantcurrent, white LED driver applications.

Features

2.5V to 10V input voltage Output voltage up to 34V Internal Schottky diode 1.6MHz PWM operation (MIC2292) 2.0MHz PWM operation (MIC2293) Stable with ceramic capacitors 15V and 34V output overvoltage protection options 500mA switch current rating 95mV feedback voltage.
