MIC2290 - 2mm 2mm PWM Boost Regulator with Internal Schotty Diode

Micrel Semiconductor

The MIC2290 by Micrel Semiconductor is a 2mm 2mm PWM Boost Regulator with Internal Schotty Diode. Below is the official datasheet preview.

📥 Download Datasheet

MIC2290 2mm 2mm PWM Boost Regulator with Internal Schotty Diode by Micrel Semiconductor - Datasheet Preview — Official preview page of the **MIC2290** 2mm 2mm PWM Boost Regulator with Internal Schotty Diode datasheet (Micrel Semiconductor).

Datasheet Details

Part number	MIC2290
Manufacturer	Micrel Semiconductor
File Size	98.85 KB
Description	2mm 2mm PWM Boost Regulator with Internal Schotty Diode
Datasheet	MIC2290-MicrelSemiconductor.pdf

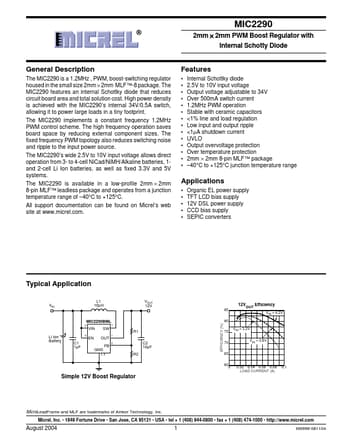

Additional preview pages of the MIC2290 datasheet.

MIC2290 Product details

Description

The MIC2290 is a 1.2MHz , PWM, boost-switching regulator housed in the small size 2mm × 2mm MLF™-8 package.

Features

an internal Schottky diode that reduces circuit board area and total solution cost. High power density is achieved with the MIC2290’s internal 34V/0.5A switch, allowing it to power large loads in a tiny footprint. The MIC2290 implements a constant frequency 1.2MHz PWM control scheme. The high frequency operation saves board space by reducing external component sizes. The fixed frequency PWM topology also reduces switching noise and ripple to the input power source. The MIC2290’s wide 2.5V to 10V.
