MAX9150

The MAX9150 is Low-Jitter 10-Port LVDS Repeater designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX9150
Manufacturer	Maxim
File Size	121.11 KB
Description	Low-Jitter 10-Port LVDS Repeater
Datasheet	MAX9150_MaximIntegratedProducts.pdf

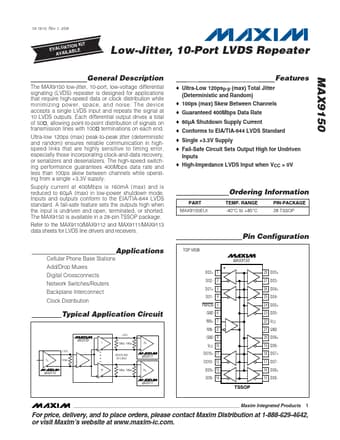

Additional preview pages of the MAX9150 datasheet.

Product details

Description

The MAX9150 low-jitter, 10-port, low-voltage differential signaling (LVDS) repeater is designed for applications that require high-speed data or clock distribution while minimizing power, space, and noise.

Features

Ultra-Low 120psp-p (max) Total Jitter (Deterministic and Random).
100ps (max) Skew Between Channels.
Guaranteed 400Mbps Data Rate.
60µA Shutdown Supply Current.
Conforms to EIA/TIA-644 LVDS Standard.
Single +3.3V Supply.
Fail-Safe Circuit Sets Output High for Undriven Inputs.
High-Impedance LVDS Input when VCC = 0V PART MAX9150EUI Ordering Information TEMP. RANGE -40°C to +85°C PIN-.
