MAX8559 - Dual / 300mA / Low-Noise Linear Regulator

Product Overview

Maxim

Datasheet Details

Part number	MAX8559
Manufacturer	Maxim
File Size	235.48 KB
Description	Dual / 300mA / Low-Noise Linear Regulator
Datasheet	MAX8559 Datasheet

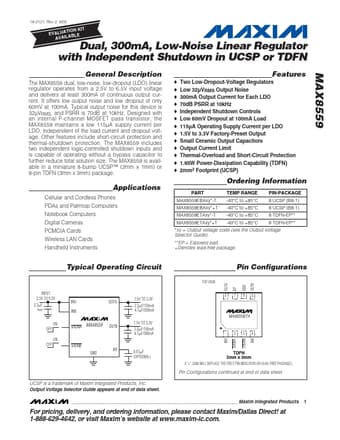

Additional preview pages of the MAX8559 datasheet.

Product details

Description

The MAX8559 dual, low-noise, low-dropout (LDO) linear regulator operates from a 2.5V to 6.5V input voltage and delivers at least 300mA of continuous output current.

Features

Two Low-Dropout-Voltage Regulators Low 32µVRMS Output Noise 300mA Output Current for Each LDO 70dB PSRR at 10kHz Independent Shutdown Controls Low 60mV Dropout at 100mA Load 115µA Operating Supply Current per LDO 1.5V to 3.3V Factory-Preset Output Small Ceramic Output Capacitors MAX8559.
Output Current Limit.
Thermal-Overload and Short-Circuit Protection.
1.95W Power-Dissipation Capability (TDFN).
2mm2 Footprint (UCSP).
