MAX8506 - PWM Step-Down DC-DC Converters

Maxim Integrated

The MAX8506 by Maxim Integrated is a PWM Step-Down DC-DC Converters. Below is the official datasheet preview.

Datasheet Details

Part number	MAX8506
Manufacturer	Maxim Integrated
File Size	621.83 KB
Description	PWM Step-Down DC-DC Converters
Datasheet	MAX8506-MaximIntegrated.pdf

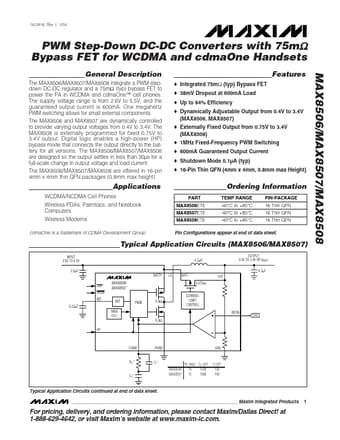

Additional preview pages of the MAX8506 datasheet.

The MAX8506/MAX8507/MAX8508 integrate a PWM stepdown DC-DC regulator and a 75mΩ (typ) bypass FET to power the PA in WCDMA and cdmaOne™ cell phones.

Integrated 75mΩ (typ) Bypass FET.
38mV Dropout at 600mA Load.
Up to 94% Efficiency.
Dynamically Adjustable Output from 0.4V to 3.4V (MAX8506, MAX8507).
Externally Fixed Output from 0.75V to 3.4V (MAX8508).
1MHz Fixed-Frequency PWM Switching.
600mA Guaranteed Output Current.
Shutdown Mode 0.1µA (typ).
16-Pin Thin QFN (4mm x 4mm, 0.8mm max Height) PART MAX8506ETE MAX8507ETE MAX8508ETE Ordering Information TEMP RAN.
