MAX7474 - Adaptive Equalizer

Product Overview

Maxim

Part number	MAX7474
Manufacturer	Maxim
File Size	287.41 KB
Description	Adaptive Equalizer
Datasheet	MAX7474 Datasheet

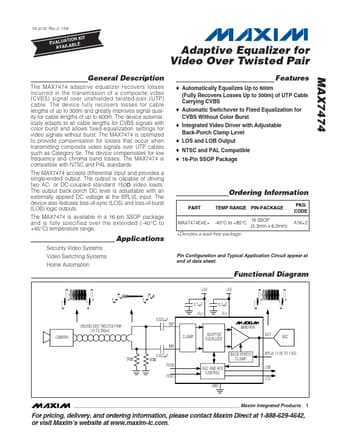

Additional preview pages of the MAX7474 datasheet.

Automatically Equalizes Up to 600m (Fully Recovers Losses Up to 300m) of UTP Cable Carrying CVBS.
Automatic Switchover to Fixed Equalization for CVBS Without Color Burst.
Integrated Video Driver with Adjustable Back-Porch Clamp Level.
LOS and LOB Output.
NTSC and PAL Compatible.
16-Pin SSOP Package MAX7474 The MAX7474 adaptive equalizer recovers losses incurred in the transmission of a composite video (CVBS) signal over unshielded twisted-.
