MAX7403 - 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters

Description

The MAX7400/MAX7403/MAX7404/MAX7407 8th-order, lowpass, elliptic, switched-capacitor filters (SCFs) operate from a single +5V (MAX7400/MAX7403) or +3V (MAX7404/MAX7407) supply.

Features

  • o 8th-Order Lowpass Elliptic Filter o Low Noise and Distortion -82dB THD + Noise (MAX7400) o Clock-Tunable Corner Frequency (1Hz to 10kHz) o 100:1 Clock-to-Corner Ratio o Single-Supply Operation +5V (MAX7400/MAX7403) +3V (MAX7404/MAX7407) o Low Power 2mA (Operating Mode) 0.2µA (Shutdown Mode) o Available in 8-Pin SO and DIP Packages o Low Output Offset: ±5mV Ordering Information PART TEMP. RANGE PIN-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX741 Low-Voltage Current-Mode SMPS Controller Maxim Integrated Products
MAX7411 Switched-Capacitor Filters Maxim Integrated
MAX7412 Switched-Capacitor Filters Maxim Integrated
MAX7415 Switched-Capacitor Filters Maxim Integrated
MAX7419 5th-Order / Lowpass / Switched-Capacitor Filters Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX7400 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters
MAX7401 8th-Order / Lowpass / Bessel / Switched-Capacitor Filters
MAX7404 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters
MAX7405 8th-Order / Lowpass / Bessel / Switched-Capacitor Filters
MAX7407 8th-Order / Lowpass / Elliptic / Switched-Capacitor Filters

Full PDF Text Transcription

Click to expand full text

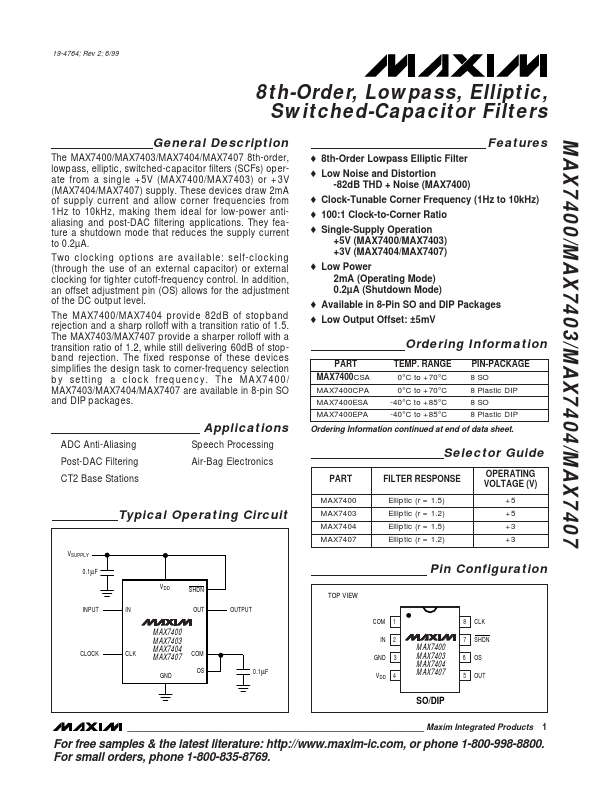

19-4764; Rev 2; 6/99 MAX7400/MAX7403/MAX7404/MAX7407 8th-Order, Lowpass, Elliptic, Switched-Capacitor Filters General Description The MAX7400/MAX7403/MAX7404/MAX7407 8th-order, lowpass, elliptic, switched-capacitor filters (SCFs) operate from a single +5V (MAX7400/MAX7403) or +3V (MAX7404/MAX7407) supply. These devices draw 2mA of supply current and allow corner frequencies from 1Hz to 10kHz, making them ideal for low-power antialiasing and post-DAC filtering applications. They feature a shutdown mode that reduces the supply current to 0.2µA. Two clocking options are available: self-clocking (through the use of an external capacitor) or external clocking for tighter cutoff-frequency control. In addition, an offset adjustment pin (OS) allows for the adjustment of the DC output level.
