MAX525 - Low-Power / Quad / 12-Bit Voltage-Output DAC

Product Overview

Maxim

Datasheet Details

Part number	MAX525
Manufacturer	Maxim
File Size	725.44 KB
Description	Low-Power / Quad / 12-Bit Voltage-Output DAC
Datasheet	MAX525 Datasheet

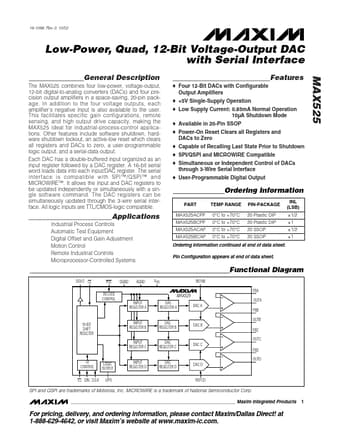

Additional preview pages of the MAX525 datasheet.

Product details

Description

The MAX525 combines four low-power, voltage-output, 12-bit digital-to-analog converters (DACs) and four precision output amplifiers in a space-saving, 20-pin package.

Features

include software shutdown, hardware shutdown lockout, an active-low reset which clears all registers and DACs to zero, a user-programmable logic output, and a serial-data output. Each DAC has a double-buffered input organized as an input register followed by a DAC register. A 16-bit serial word loads data into each input/DAC register. The serial interface is compatible with SPI™/QSPI™ and Microwire™. It allows the input and DAC registers to be updated independently or simultaneously with a singl.
