MAX5215

The MAX5215 is Rail-to-Rail DAC designed by Maxim Integrated.

Product Overview

Maxim Integrated

Part number	MAX5215
Manufacturer	Maxim Integrated
File Size	7.50 MB
Description	Rail-to-Rail DAC
Datasheet	MAX5215-MaximIntegrated.pdf

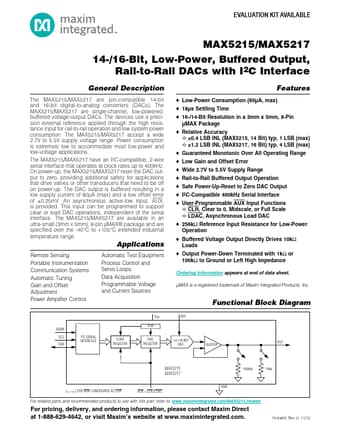

Additional preview pages of the MAX5215 datasheet.

The MAX5215/MAX5217 are pin-compatible 14-bit and 16-bit digital-to-analog converters (DACs).

S Low-Power Consumption (80µA, max) S 18µs Settling Time S 16-/14-Bit Resolution in a 3mm x 5mm, 8-Pin µMAX Package S Relative Accuracy.
±0.4 LSB INL (MAX5215, 14 Bit) typ, 1 LSB (max).
±1.2 LSB INL (MAX5217, 16 Bit) typ, 4 LSB (max) S Guaranteed Monotonic Over All Operating Range S Low Gain and Offset Error S Wide 2.7V to 5.5V Supply Range S Rail-to-Rail Buffered Output Operation S Safe Power-Up-Reset to Zero DAC Output S I2C-Compatible 400kHz Serial Interface S User-Programmable AUX.
