MAX4575 - CMOS Analog Switches

Product Overview

Maxim

Part number	MAX4575
Manufacturer	Maxim
File Size	255.63 KB
Description	CMOS Analog Switches
Datasheet	MAX4575 Datasheet

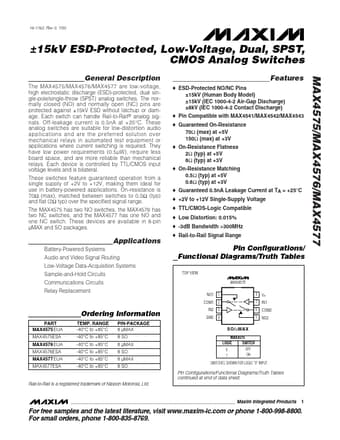

Additional preview pages of the MAX4575 datasheet.

The MAX4575/MAX4576/MAX4577 are low-voltage, high electrostatic discharge (ESD)-protected, dual single-pole/single-throw (SPST) analog switches.

o ESD-Protected NO/NC Pins ±15kV (Human Body Model) ±15kV (IEC 1000-4-2 Air-Gap Discharge) ±8kV (IEC 1000-4-2 Contact Discharge) o Pin Compatible with MAX4541/MAX4542/MAX4543 o Guaranteed On-Resistance 70Ω (max) at +5V 150Ω (max) at +3V o On-Resistance Flatness 2Ω (typ) at +5V 6Ω (typ) at +3V o On-Resistance Matching 0.5Ω (typ) at +5V 0.6Ω (typ) at +3V o Guaranteed 0.5nA Leakage Current at TA = +25°C o +2V to +12V Single-Supply Voltage o TTL/CMOS-Logic Compatible o Low Distortion: 0.015% o -3dB.
