MAX4574 - Serially Controlled / Clickless Audio/Video Switches

Product Overview

Maxim

Part number	MAX4574
Manufacturer	Maxim
File Size	311.73 KB
Description	Serially Controlled / Clickless Audio/Video Switches
Datasheet	MAX4574 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX4574, MAX4572. Please refer to the document for exact specifications by model.

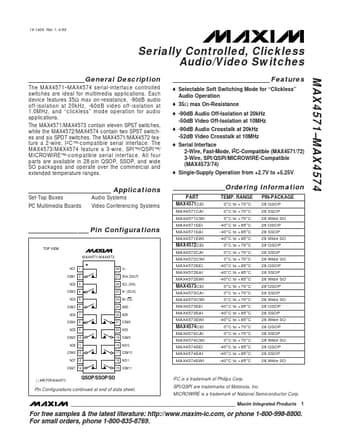

Additional preview pages of the MAX4574 datasheet.

The MAX4571 MAX4574 serial-interface controlled switches are ideal for multimedia applications.

35Ω max on-resistance, -90dB audio off-isolation at 20kHz, -60dB video off-isolation at 1.0MHz, and “clickless” mode operation for audio.
