MAX4428 - Dual High-Speed 1.5A MOSFET Drivers

Product Overview

Maxim

Part number	MAX4428
Manufacturer	Maxim
File Size	578.61 KB
Description	Dual High-Speed 1.5A MOSFET Drivers
Datasheet	MAX4428 Datasheet

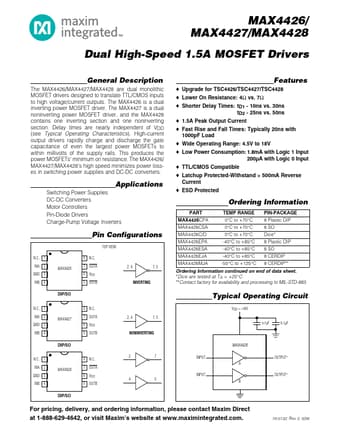

Additional preview pages of the MAX4428 datasheet.

The MAX4426/MAX4427/MAX4428 are dual monolithic MOSFET drivers designed to translate TTL/CMOS inputs to high voltage/current outputs.

S Upgrade for TSC4426/TSC4427/TSC4428 S Lower On Resistance: 4Ω vs. 7Ω S Shorter Delay Times: tD1 - 10ns vs. 30ns tD2 - 25ns vs. 50ns S 1.5A Peak Output Current S Fast Rise and Fall Times: Typically 20ns with 1000pF Load S Wide Operating Range: 4.5V to 18V S Low Power Consumption: 1.8mA with Logic 1 Input 200µA with Logic 0 Input S TTL/CMOS Compatible S Latchup Protected-Withstand > 500mA Reverse Current S ESD Protected Ordering Information PART TEMP RANGE PIN-.
