MAX44285 - Current-Sense Amplifier

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX44285
Manufacturer	Maxim Integrated Products
File Size	706.77 KB
Description	Current-Sense Amplifier
Datasheet	MAX44285 Datasheet

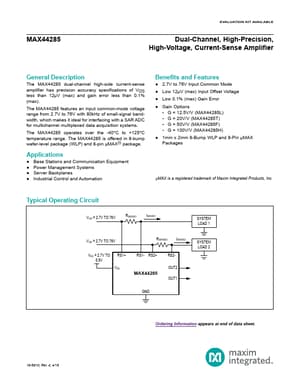

Additional preview pages of the MAX44285 datasheet.

Product details

Description

The MAX44285 dual-channel high-side current-sense amplifier has precision accuracy specifications of VOS less than 12μV (max) and gain error less than 0.1% (max).

Features

an input common-mode voltage range from 2.7V to 76V with 80kHz of small-signal bandwidth, which makes it ideal for interfacing with a SAR ADC for multichannel multiplexed data acquisition systems. The MAX44285 operates over the -40°C to +125°C temperature range. The MAX44285 is offered in 8-bump WLP and 8-pin µMAXM packages. Benefits and Features.
Low 0.1% (max) Gain Error.
2.7V to 76V Input Common Mode.
Low 12μV (max) Input Offset Voltage Gain Options.
