MAX4215 - Rail-to-Rail Buffers

Product Overview

Maxim

Datasheet Details

Part number	MAX4215
Manufacturer	Maxim
File Size	464.92 KB
Description	Rail-to-Rail Buffers
Datasheet	MAX4215 Datasheet

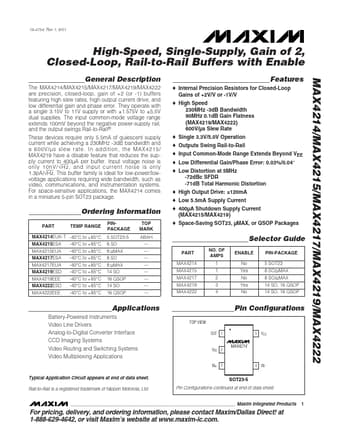

Additional preview pages of the MAX4215 datasheet.

Product details

Description

The MAX4214/MAX4215/MAX4217/MAX4219/MAX4222 are precision, closed-loop, gain of +2 (or -1) buffers featuring high slew rates, high output current drive, and low differential gain and phase error.

Features

o Internal Precision Resistors for Closed-Loop Gains of +2V/V or -1V/V o High Speed: 230MHz -3dB Bandwidth 90MHz 0.1dB Gain Flatness (MAX4219/22) 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Outputs Swing Rail-to-Rail o Input Common-Mode Range Extends Beyond VEE o Low Differential Gain/Phase Error: 0.03%/0.04° o Low Distortion at 5MHz: -72dBc SFDR -71dB Total Harmonic Distortion o High Output Drive: ±120mA o Low 5.5mA Supply Current o 400µA Shutdown Supply Current (MAX4215/19) o Space-Saving.
