MAX4212 - Miniature / 300MHz / Single-Supply / Rail-to-Rail Op Amps

Product Overview

Maxim

Datasheet Details

Part number	MAX4212
Manufacturer	Maxim
File Size	415.10 KB
Description	Miniature / 300MHz / Single-Supply / Rail-to-Rail Op Amps
Datasheet	MAX4212 Datasheet

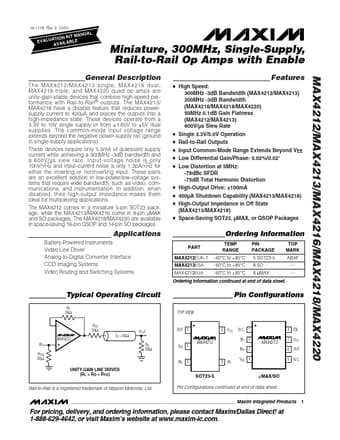

Additional preview pages of the MAX4212 datasheet.

Product details

Description

The MAX4212/MAX4213 single, MAX4216 dual, MAX4218 triple, and MAX4220 quad op amps are unity-gain-stable devices that combine high-speed performance with rail-to-rail outputs.

Features

o High Speed: 300MHz -3dB Bandwidth (MAX4212/13) 200MHz -3dB Bandwidth (MAX4216/18/20) 50MHz 0.1dB Gain Flatness (MAX4212/13) 600V/µs Slew Rate o Single 3.3V/5.0V Operation o Rail-to-Rail Outputs o Input Common-Mode Range Extends Beyond VEE o Low Differential Gain/Phase: 0.02%/0.02° o Low Distortion at 5MHz: -78dBc SFDR -75dB Total Harmonic Distortion o High Output Drive: ±100mA o 400µA Shutdown Capability (MAX4213/18) o High Output Impedance in Off State (MAX4213/18) o Space-Saving SOT23-5, µMA.
