MAX4135 - 1-Input/4-Output Video Distribution Amplifiers

Product Overview

Maxim

Part number	MAX4135
Manufacturer	Maxim
File Size	249.62 KB
Description	1-Input/4-Output Video Distribution Amplifiers
Datasheet	MAX4135 Datasheet
Additional preview pages of the MAX4135 datasheet.

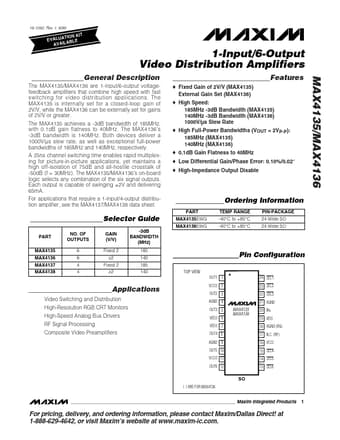

The MAX4135/MAX4136 are 1-input/6-output voltagefeedback amplifiers that combine high speed with fast switching for video distribution applications.

o Fixed Gain of 2V/V (MAX4135) External Gain Set (MAX4136) o High Speed: 185MHz -3dB Bandwidth (MAX4135) 140MHz -3dB Bandwidth (MAX4136) 1000V/µs Slew Rate o High Full-Power Bandwidths (VOUT = 2Vp-p): 185MHz (MAX4135) 140MHz (MAX4136) o 0.1dB Gain Flatness to 40MHz o Low Differential Gain/Phase Error: 0.10%/0.02° o High-Impedance Output Disable MAX4135/MAX4136 ______________Ordering Information PART TEMP. RANGE -40°C to +85°C -40°C to +85°C PIN-.
