MAX3804 - 12.5Gbps Settable Receive Equalizer

Name: MAX3804
SKU: MAX3804-498009

Maxim

The MAX3804 by Maxim is a 12.5Gbps Settable Receive Equalizer. Below is the official datasheet preview.

Datasheet Details

Part number	MAX3804
Manufacturer	Maxim
File Size	1.49 MB
Description	12.5Gbps Settable Receive Equalizer
Datasheet	MAX3804_MaximIntegratedProducts.pdf
Additional preview pages of the MAX3804 datasheet.

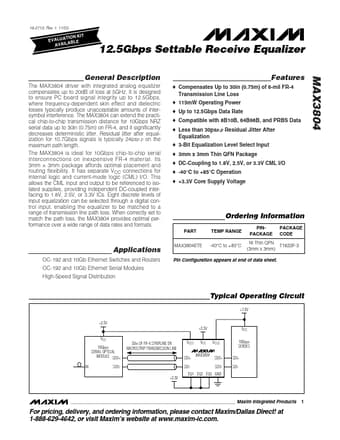

o Compensates Up to 30in (0.75m) of 6-mil FR-4 Transmission Line Loss o 115mW Operating Power o Up to 12.5Gbps Data Rate o Compatible with 8B10B, 64B66B, and PRBS Data o Less than 30psP-P Residual Jitter After Equalization o 3-Bit Equalization Level Select Input o 3mm x 3mm Thin QFN Package o DC-Coupling to 1.8V, 2.5V, or 3.3V CML I/O o -40°C to +85°C Operation o +3.3V Core Supply Voltage MAX3804 The MAX3804 driver with integrated analog equalizer compensates up to 20dB of loss at 5GHz. It is.
