MAX3800 - 3.2Gbps Adaptive Equalizer and Cable Driver

Name: MAX3800
SKU: MAX3800-498001

Maxim

The MAX3800 by Maxim is a 3.2Gbps Adaptive Equalizer and Cable Driver. Below is the official datasheet preview.

Datasheet Details

Part number	MAX3800
Manufacturer	Maxim
File Size	729.47 KB
Description	3.2Gbps Adaptive Equalizer and Cable Driver
Datasheet	MAX3800_MaximIntegratedProducts.pdf

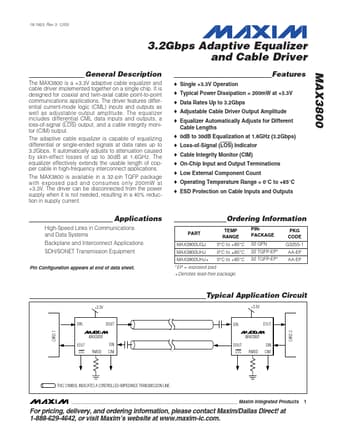

Additional preview pages of the MAX3800 datasheet.

The MAX3800 is a +3.3V adaptive cable equalizer and cable driver implemented together on a single chip.

differential current-mode logic (CML) inputs and outputs as well as adjustable output amplitude. The equalizer includes differential CML data inputs and outputs, a loss-of-signal (LOS) output, and a cable integrity monitor (CIM) output. The adaptive cable equalizer is capable of equalizing differential or single-ended signals at data rates up to 3.2Gbps. It automatically adjusts to attenuation caused by skin-effect losses of up to 30dB at 1.6GHz. The equalizer effectively extends the usable leng.
