MAX3319 - 2.5V / 1A / 460kbps / RS-232-Compatible Transceivers

Product Overview

Maxim

Datasheet Details

Part number	MAX3319
Manufacturer	Maxim
File Size	196.05 KB
Description	2.5V / 1A / 460kbps / RS-232-Compatible Transceivers
Datasheet	MAX3319 Datasheet

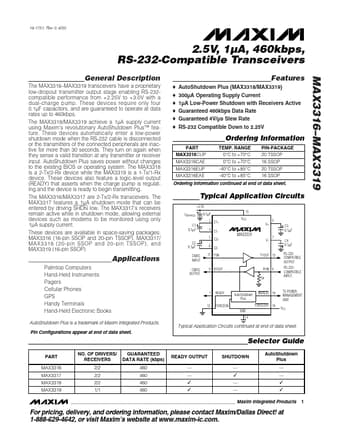

Additional preview pages of the MAX3319 datasheet.

Product details

Description

The MAX3316 MAX3319 transceivers have a proprietary low-dropout transmitter output stage enabling RS-232compatible performance from +2.25V to +3.0V with a dual-charge pump.

Features

a 1µA shutdown mode that can be entered by driving SHDN low. The MAX3317’s receivers remain active while in shutdown mode, allowing external devices such as modems to be monitored using only 1µA supply current. These devices are available in space-saving packages: MAX3316 (16-pin SSOP and 20-pin TSSOP), MAX3317/ MAX3318 (20-pin SSOP and 20-pin TSSOP), and MAX3319 (16-pin SSOP). Features o AutoShutdown Plus (MAX3318/MAX3319) o 300µA Operating Supply Current o 1µA Low-Power Shutdown with Receiver.
