MAX3318E

The MAX3318E is RS-232 Compatible Transceivers designed by Maxim Integrated.

Product Overview

Maxim Integrated

Part number	MAX3318E, MAX3316E
Manufacturer	Maxim Integrated
File Size	190.61 KB
Description	RS-232 Compatible Transceivers
Datasheet	MAX3316E_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX3318E, MAX3316E. Please refer to the document for exact specifications by model.

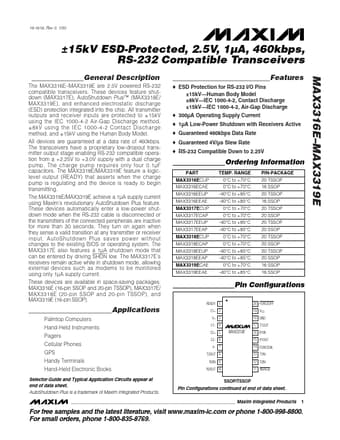

Additional preview pages of the MAX3318E datasheet.

The MAX3316E MAX3319E are 2.5V powered RS-232 compatible transceivers.

a 1µA shutdown mode that can be entered by driving SHDN low. The MAX3317E’s receivers remain active while in shutdown mode, allowing external devices such as modems to be monitored using only 1µA supply current. These devices are available in space-saving packages: MAX3316E (16-pin SSOP and 20-pin TSSOP), MAX3317E/ MAX3318E (20-pin SSOP and 20-pin TSSOP), and MAX3319E (16-pin SSOP). ________________________.
