MAX2654 - 1575MHz/1900MHz Variable-IP3 Low-Noise Amplifiers

Maxim

The MAX2654 by Maxim is a 1575MHz/1900MHz Variable-IP3 Low-Noise Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

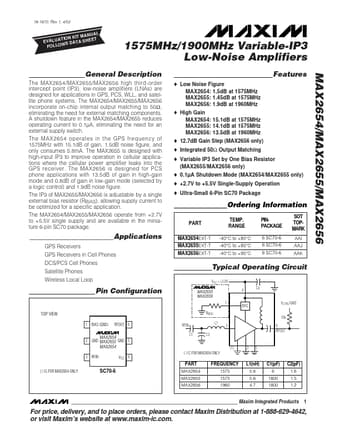

MAX2654 1575MHz/1900MHz Variable-IP3 Low-Noise Amplifiers by Maxim - Datasheet Preview — Official preview page of the **MAX2654** 1575MHz/1900MHz Variable-IP3 Low-Noise Amplifiers datasheet (Maxim).

Datasheet Details

Part number	MAX2654
Manufacturer	Maxim
File Size	379.54 KB
Description	1575MHz/1900MHz Variable-IP3 Low-Noise Amplifiers
Datasheet	MAX2654_MaximIntegratedProducts.pdf
Additional preview pages of the MAX2654 datasheet.

MAX2654 Product details

Description

The MAX2654/MAX2655/MAX2656 high third-order intercept point (IP3), low-noise amplifiers (LNAs) are designed for applications in GPS, PCS, WLL, and satellite phone systems.

Features

o Low Noise Figure MAX2654: 1.5dB at 1575MHz MAX2655: 1.45dB at 1575MHz MAX2656: 1.9dB at 1960MHz o High Gain MAX2654: 15.1dB at 1575MHz MAX2655: 14.1dB at 1575MHz MAX2656: 13.5dB at 1960MHz o 12.7dB Gain Step (MAX2656 only) o Integrated 50Ω Output Matching o Variable IP3 Set by One Bias Resistor (MAX2655/MAX2656 only) o 0.1µA Shutdown Mode (MAX2654/MAX2655 only) o +2.7V to +5.5V Single-Supply Operation o Ultra-Small 6-Pin SC70 Package General.
