MAX2653 - Low-Noise Amplifiers

Name: MAX2653
SKU: MAX2653-448464

Maxim

The MAX2653 by Maxim is a Low-Noise Amplifiers. Below is the official datasheet preview.

Datasheet Details

Part number	MAX2653
Manufacturer	Maxim
File Size	236.69 KB
Description	Low-Noise Amplifiers
Datasheet	MAX2653_MaximIntegratedProducts.pdf

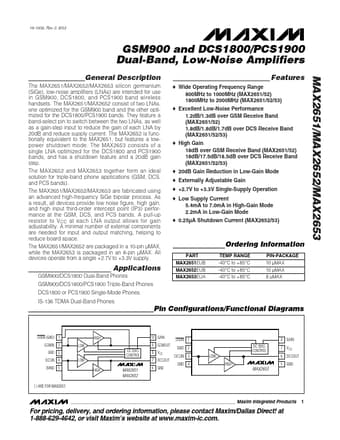

Additional preview pages of the MAX2653 datasheet.

The MAX2651/MAX2652/MAX2653 silicon germanium (SiGe), low-noise amplifiers (LNAs) are intended for use in GSM900, DCS1800, and PCS1900 band wireless handsets. The MAX2651/MAX2652 consist of two LNAs, one optimized for the GSM900 band and the other optimized for the DCS1800/PCS1900 bands. They feature a band-select pin to switch between the two LNAs, as well as a gain-step input to reduce the gain of each LNA by 20dB and reduce supply current. The MAX2652 is functionally equivalent to the MAX265.
