MAX1775 - Dual-Output Step-Down DC-DC Converter

Product Overview

Maxim

Part number	MAX1775
Manufacturer	Maxim
File Size	258.91 KB
Description	Dual-Output Step-Down DC-DC Converter
Datasheet	MAX1775 Datasheet

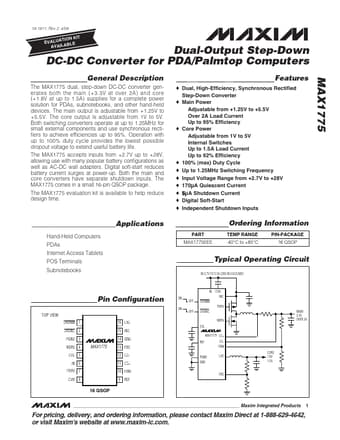

Additional preview pages of the MAX1775 datasheet.

o Dual, High-Efficiency, Synchronous Rectified Step-Down Converter o Main Power Adjustable from +1.25V to +5.5V Over 2A Load Current Up to 95% Efficiency o Core Power Adjustable from 1V to 5V Internal Switches Up to 1.5A Load Current Up to 92% Efficiency o 100% (max) Duty Cycle o Up to 1.25MHz Switching Frequency o Input Voltage Range from +2.7V to +28V o 170µA Quiescent Current o 5µA Shutdown Current o Digital Soft-Start o Independent Shutdown Inputs MAX1775 The MAX1775 is a dual, step-down D.
