MAX1771 - Step-Up DC-DC Controller

Product Overview

Maxim

Part number	MAX1771
Manufacturer	Maxim
File Size	1.66 MB
Description	Step-Up DC-DC Controller
Datasheet	MAX1771 Datasheet

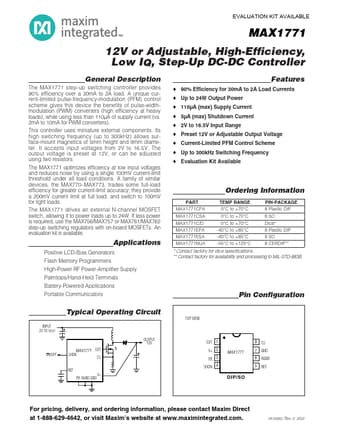

Additional preview pages of the MAX1771 datasheet.

The MAX1771 step-up switching controller provides 90% efficiency over a 30mA to 2A load.

o 90% Efficiency for 30mA to 2A Load Currents o Up to 24W Output Power o 110µA (max) Supply Current o 5µA (max) Shutdown Current o 2V to 16.5V Input Range o Preset 12V or Adjustable Output Voltage o Current-Limited PFM Control Scheme o Up to 300kHz Switching Frequency o Evaluation Kit Available Ordering Information PART MAX1771CPA TEMP RANGE 0°C to +70°C PIN-.
