MAX1748 - Triple-Output TFT LCD DC-DC Converter

Maxim

The MAX1748 by Maxim is a Triple-Output TFT LCD DC-DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

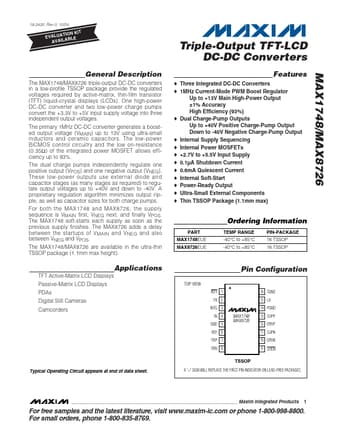

MAX1748 Triple-Output TFT LCD DC-DC Converter by Maxim - Datasheet Preview — Official preview page of the **MAX1748** Triple-Output TFT LCD DC-DC Converter datasheet (Maxim).

Datasheet Details

Part number	MAX1748
Manufacturer	Maxim
File Size	219.75 KB
Description	Triple-Output TFT LCD DC-DC Converter
Datasheet	MAX1748_MaximIntegratedProducts.pdf
Additional preview pages of the MAX1748 datasheet.

MAX1748 Product details

Description

The MAX1748/MAX8726 triple-output DC-DC converters in a low-profile TSSOP package provide the regulated voltages required by active-matrix, thin-film transistor (TFT) liquid-crystal displays (LCDs).

Features

Three Integrated DC-DC Converters.
1MHz Current-Mode PWM Boost Regulator Up to +13V Main High-Power Output ±1% Accuracy High Efficiency (93%).
Dual Charge-Pump Outputs Up to +40V Positive Charge-Pump Output Down to -40V Negative Charge-Pump Output.
Internal Supply Sequencing.
Internal Power MOSFETs.
+2.7V to +5.5V Input Supply.
0.1µA Shutdown Current.
0.6mA Quiescent Current.
Internal Soft-Start.
Power-Rea.
