MAX17409 - 1-Phase Quick-PWM NVIDIA CPU Controller

Maxim Integrated Products

The MAX17409 by Maxim Integrated Products is a 1-Phase Quick-PWM NVIDIA CPU Controller. Below is the official datasheet preview.

Datasheet Details

Part number	MAX17409
Manufacturer	Maxim Integrated Products
File Size	527.41 KB
Description	1-Phase Quick-PWM NVIDIA CPU Controller
Datasheet	MAX17409_MaximIntegratedProducts.pdf

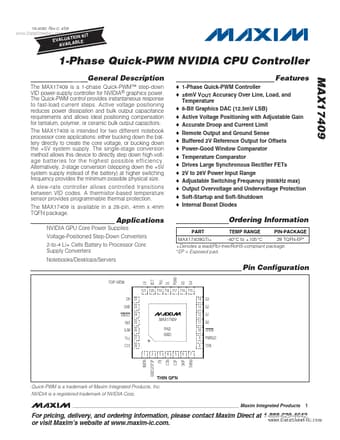

Additional preview pages of the MAX17409 datasheet.

The MAX17409 is a 1-phase Quick-PWM™ step-down VID power-supply controller for NVIDIA® graphics power.

o 1-Phase Quick-PWM Controller o ±6mV VOUT Accuracy Over Line, Load, and Temperature o o o o o o o o o o 6-Bit Graphics DAC (12.5mV LSB) Active Voltage Positioning with Adjustable Gain Accurate Droop and Current Limit Remote Output and Ground Sense Buffered 2V Reference Output for Offsets Power-Good Window Comparator Temperature Comparator Drives Large Synchronous Rectifier FETs 2V to 26V Power Input Range Adjustable Switching Frequency (600kHz max) MAX17409 o Output Overvoltage and Undervolta.
