MAX1706 - 1- to 3-Cell / High-Current / Low-Noise / Step-Up DC-DC Converters

Maxim

The MAX1706 by Maxim is a 1- to 3-Cell / High-Current / Low-Noise / Step-Up DC-DC Converters. Below is the official datasheet preview.

Datasheet Details

Part number	MAX1706
Manufacturer	Maxim
File Size	245.03 KB
Description	1- to 3-Cell / High-Current / Low-Noise / Step-Up DC-DC Converters
Datasheet	MAX1706_MaximIntegratedProducts.pdf

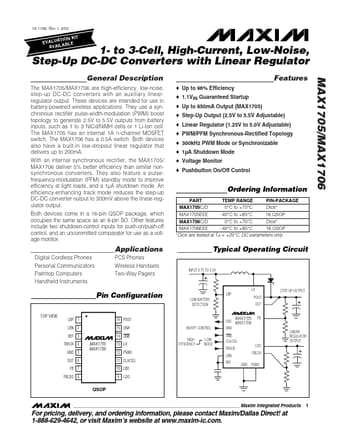

Additional preview pages of the MAX1706 datasheet.

The MAX1705/MAX1706 are high-efficiency, low-noise, step-up DC-DC converters with an auxiliary linearregulator output.

include two shutdown-control inputs for push-on/push-off control, and an uncommitted comparator for use as a voltage monitor. ANUAL N KIT M IO T A U EVAL BLE AVAILA ____________________________Features o Up to 96% Efficiency o 1.1VIN Guaranteed Start-Up o Up to 850mA Output (MAX1705) o Step-Up Output (2.5V to 5.5V adjustable) o Linear Regulator (1.25V to 5.0V adjustable) o PWM/PFM Synchronous-Rectified Topology o 300kHz PWM Mode or Synchronizable o 1µA Shutdown Mode o Voltage Monitor o Pushbut.
