MAX1702B - Triple-Output Power-Management IC

MAX1702B Description

MAX1702B Triple Output Power Management IC for Microprocessor-Based Systems General .
The MAX1702B power-management IC supports ARM Powered® devices such as the Intel® PXA210 and PXA250 microprocessors based on the Intel XScale™ micro-a.

MAX1702B Features

* Three Regulators in One Package
* Peripherals and I/O Supply: 3.3V at 900mA
* μP Core Supply: 0.7V to VIN at 400 mA
* Memory Supply: 1.8/2.5/3.3V at 800 mA
* Supports Intel® PXA210 and PXA250 Microprocessors
* Power-On Reset with Manual Reset Inpu

MAX1702B Applications

* requiring substantial computing and multimedia capability at low power. The MAX1702B integrates three ultra-high-performance power supplies with associated supervisory and management functions. Included is a step-down DC-DC converter to supply 3.3V I/O and peripherals, a step-down DC-DC converter to

📥 Download Datasheet

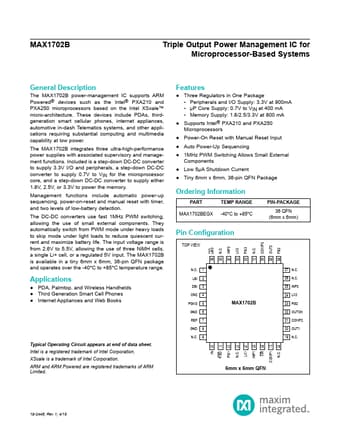

Preview of MAX1702B PDF
datasheet Preview Page 2 datasheet Preview Page 3
