MAX1044 - Switched-Capacitor Voltage Converters

Maxim

Datasheet Details

Part number	MAX1044
Manufacturer	Maxim
File Size	1.73 MB
Description	Switched-Capacitor Voltage Converters
Datasheet	MAX1044_MaximIntegratedProducts.pdf

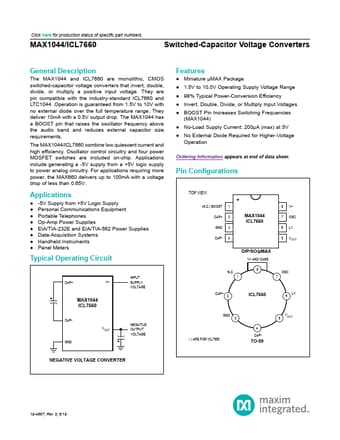

The MAX1044 and ICL7660 are monolithic, CMOS switched-capacitor voltage converters that invert, double, divide, or multiply a positive input voltage.

Miniature μMAX Package.
1.5V to 10.0V Operating Supply Voltage Range.
98% Typical Power-Conversion Efficiency.
Invert, Double, Divide, or Multiply Input Voltages.
BOOST Pin Increases Switching Frequencies (MAX1044).
No-Load Supply Current: 200μA (max) at 5V.
No External Diode Required for Higher-Voltage Operation Ordering Information appears at end of data sheet. Pin Configurations TOP VIEW + (N. C. ) BOOST 1 CAP+ 2 GND 3 MA.
