MAX1020 - Multichannel ADCs/DACs

General Description

The MAX1020/MAX1022/MAX1057/MAX1058 integrate a multichannel, 10-bit, analog-to-digital converter (ADC) and an octal, 10-bit, digital-to-analog converter (DAC) in a single IC.

Key Features

  • such as an internal ±1°C accurate temperature sensor,.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX1021 (MAX1021 / MAX1043) Multichannel ADCs/DACs Maxim
MAX1023 10-Bit / Multichannel ADCs/DACs with FIFO / Temperature Sensing / and GPIO Ports Maxim
MAX1026 10-Bit 300ksps ADCs Maxim Integrated Products
MAX1027 (MAX1027 - MAX1031) 10-Bit 300ksps ADCs Maxim Integrated Products
MAX1028 10-Bit 300ksps ADCs Maxim Integrated Products

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX1022 Multichannel ADCs/DACs
MAX1036 4-/12-Channel 2-Wire Serial 8-Bit ADCs
MAX1037 4-/12-Channel 2-Wire Serial 8-Bit ADCs
MAX1038 4-/12-Channel 2-Wire Serial 8-Bit ADCs
MAX1039 4-/12-Channel 2-Wire Serial 8-Bit ADCs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

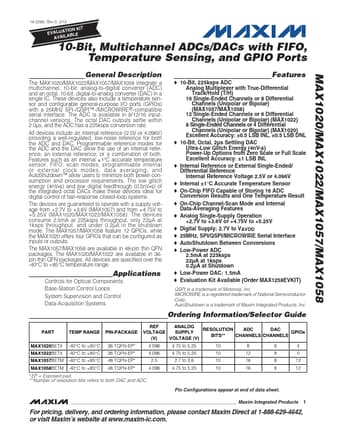

19-3280; Rev 5; 2/12 EVAALVUAAILTAIOBNLEKIT 10-Bit, Multichannel ADCs/DACs with FIFO, Temperature Sensing, and GPIO Ports MAX1020/MAX1022/MAX1057/MAX1058 General Description The MAX1020/MAX1022/MAX1057/MAX1058 integrate a multichannel, 10-bit, analog-to-digital converter (ADC) and an octal, 10-bit, digital-to-analog converter (DAC) in a single IC. These devices also include a temperature sensor and configurable general-purpose I/O ports (GPIOs) with a 25MHz SPI-/QSPI™-/MICROWIRE®-compatible serial interface. The ADC is available in 8/12/16 inputchannel versions. The octal DAC outputs settle within 2.0µs, and the ADC has a 225ksps conversion rate. All devices include an internal reference (2.5V or 4.096V) providing a well-regulated, low-noise reference for both the ADC and DAC.
