MAX6107

The MAX6107 is SOT23 Voltage References designed by Maxim Integrated.

Product Overview

Maxim Integrated

Part number	MAX6107, MAX6100
Manufacturer	Maxim Integrated
File Size	321.67 KB
Description	SOT23 Voltage References
Datasheet	MAX6100-MaximIntegrated.pdf
Note	This datasheet PDF includes multiple part numbers: MAX6107, MAX6100. Please refer to the document for exact specifications by model.

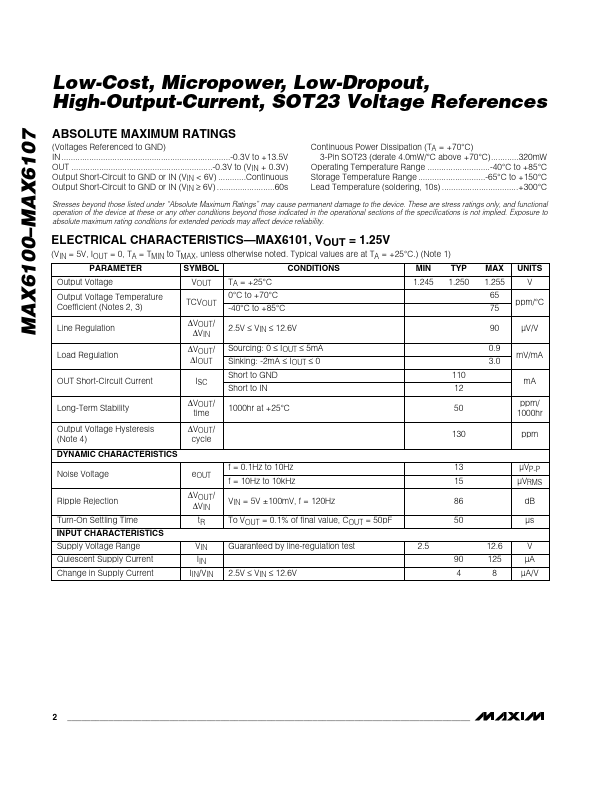

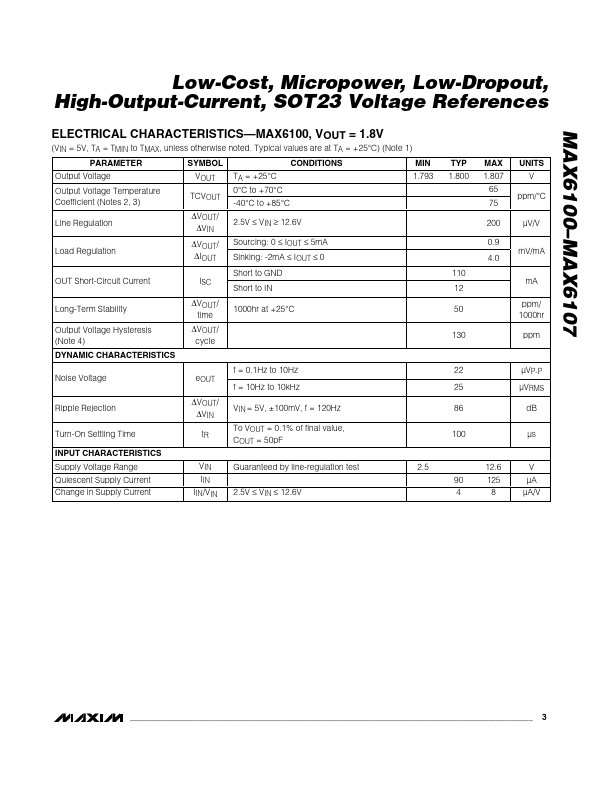

Additional preview pages of the MAX6107 datasheet.

The MAX6100 MAX6107 are low-cost, low-dropout (LDO), micropower voltage references.

o Ultra-Small 3-Pin SOT23 Package o Low Cost o No Output Capacitor Required o Stable with Capacitive Loads o Load Regulation (2mA Sink): 8mV/mA (max) Load Regulation (5mA Source): 0.9mV/mA (max) o ±0.4% (max) Initial Accuracy o Low 75ppm/°C Temperature Coefficient o 125µA (max) Quiescent Supply Current o 50mV Dropout at 1mA Load Current Ordering Information PART TEMP RANGE.
