MAX5982B - Powered Device Interface Controllers

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX5982B
Manufacturer	Maxim Integrated
File Size	1.08 MB
Description	Powered Device Interface Controllers
Datasheet	MAX5982B Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX5982B, MAX5982A. Please refer to the document for exact specifications by model.

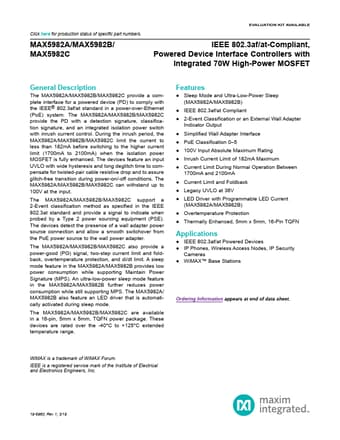

Additional preview pages of the MAX5982B datasheet.

Product details

Description

The MAX5982A/MAX5982B/MAX5982C provide a complete interface for a powered device (PD) to comply with the IEEE® 802.3af/at standard in a power-over-Ethernet (PoE) system.

Features

Sleep Mode and Ultra-Low-Power Sleep (MAX5982A/MAX5982B).
IEEE 802.3af/at Compliant.
2-Event Classification or an External Wall Adapter Indicator Output.
Simplified Wall Adapter Interface.
PoE Classification 0.
5.
100V Input Absolute Maximum Rating.
Inrush Current Limit of 182mA Maximum.
Current Limit During Normal Operation Between 1700mA and 2100mA.
Current Limit and Foldback.
Legacy UVL.
