MAX4716, MAX4715 - Single-Supply SPST Analog Switches

Maxim Integrated

The MAX4716 by Maxim Integrated is a Single-Supply SPST Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

MAX4716 Single-Supply SPST Analog Switches by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX4716** Single-Supply SPST Analog Switches datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX4716, MAX4715
Manufacturer	Maxim Integrated
File Size	1.21 MB
Description	Single-Supply SPST Analog Switches
Datasheet	MAX4715_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX4716, MAX4715. Please refer to the document for exact specifications by model.

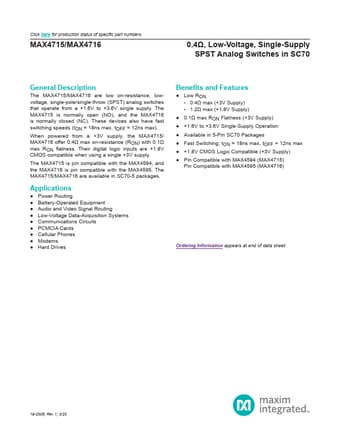

Additional preview pages of the MAX4716 datasheet.

MAX4716 Product details

Description

The MAX4715/MAX4716 are low on-resistance, lowvoltage, single-pole/single-throw (SPST) analog switches that operate from a +1.6V to +3.6V single supply.

Features

Low RON.
0.4Ω max (+3V Supply).
1.2Ω max (+1.8V Supply).
0.1Ω max RON Flatness (+3V Supply).
+1.6V to +3.6V Single-Supply Operation.
Available in 5-Pin SC70 Packages.
Fast Switching: tON = 18ns max, tOFF = 12ns max.
+1.8V CMOS Logic Compatible (+3V Supply).
Pin Compatible with MAX4594 (MAX4715) Pin Compatible with MAX4595 (MAX4716) Ordering Information appears at end of data sheet. 19-2008; Rev 1; 3/20 M.
