MAX4711 - Quad SPST Analog Switches

Description

The MAX4711/MAX4712/MAX4713 are fault-protected, Rail-to-Rail®, low-voltage analog switches featuring low on-resistance and guaranteed on-resistance flatness over the specified signal range.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX471 Precision / High-Side Current-Sense Amplifiers Maxim
MAX4714 0.8 / Low-Voltage / Single-Supply SPDT Analog Switch Maxim
MAX4715 Single-Supply SPST Analog Switches Maxim
MAX4717 Dual SPDT Analog Switches Maxim
MAX4719 300MHz Bandwidth / Dual SPDT Analog Switch in UCSP Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX4712 Quad SPST Analog Switches
MAX4713 Quad SPST Analog Switches
MAX4716 Single-Supply SPST Analog Switches
MAX4718 Dual SPDT Analog Switches
MAX4708 Single 8-to-1 / Dual 4-to-1 Multiplexers

Full PDF Text Transcription

Click to expand full text

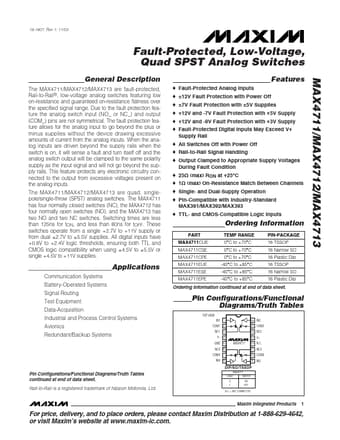

19-1907; Rev 1; 11/03 MAX4711/MAX4712/MAX4713 Fault-Protected, Low-Voltage, Quad SPST Analog Switches General Description The MAX4711/MAX4712/MAX4713 are fault-protected, Rail-to-Rail®, low-voltage analog switches featuring low on-resistance and guaranteed on-resistance flatness over the specified signal range. Due to the fault protection feature the analog switch input (NO_ or NC_) and output (COM_) pins are not symmetrical. The fault protection feature allows for the analog input to go beyond the plus or minus supplies without the device drawing excessive amounts of current from the analog inputs.
