MAX4073T - High-Side Current-Sense Amplifier

Product Overview

Maxim Integrated

Part number	MAX4073T
Manufacturer	Maxim Integrated
File Size	353.07 KB
Description	High-Side Current-Sense Amplifier
Datasheet	MAX4073T Datasheet

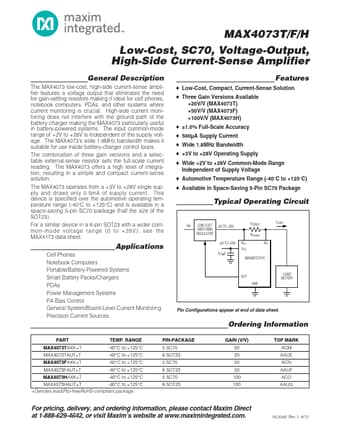

Additional preview pages of the MAX4073T datasheet.

The MAX4073 low-cost, high-side current-sense amplifier

a voltage output that eliminates the need for gain-setting resistors making it ideal for cell phones, notebook computers, PDAs, and other systems where current monitoring is crucial. High-side current monitoring does not interfere with the ground path of the battery charger making the MAX4073 particularly useful in battery-powered systems. The input common-mode range of +2V to +28V is independent of the supply voltage. The MAX4073’s wide 1.8MHz bandwidth makes it suitable for use inside battery-.
