MAX4073F - High-Side Current-Sense Amplifier

Download the MAX4073F datasheet PDF. This datasheet also covers the MAX4073T variant, as both devices belong to the same high-side current-sense amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX4073 low-cost, high-side current-sense amplifier

Features

  • a voltage output that eliminates the need for gain-setting resistors making it ideal for cell phones, notebook computers, PDAs, and other systems where current monitoring is crucial. High-side current monitoring does not interfere with the ground path of the battery charger making the MAX4073 particularly useful in battery-powered systems. The input common-mode range of +2V to +28V is independent of the supply voltage. The MAX4073’s wide 1.8MHz bandwidth makes it suitable for use inside battery-.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX4073T-MaximIntegrated.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX407 (MAX406 - MAX419) Single-Supply Op Amps Maxim
MAX4074 Micropower / SOT23 / Rail-to-Rail / Fixed-Gain / GainAmp/Open-Loop Op Amps Maxim
MAX4079 Complete Audio/Video Backend Solution Maxim Integrated Products
MAX400 Ultra Low Offset Voltage Operational Amplifier Maxim
MAX4000 2.5GHz 45dB RF-Detecting Controllers Maxim

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX4073H High-Side Current-Sense Amplifier
MAX4073T High-Side Current-Sense Amplifier
MAX4070 Current-Sense Amplifiers
MAX4071 Current-Sense Amplifiers
MAX4072 Current-Sense Amplifiers

Full PDF Text Transcription

Click to expand full text

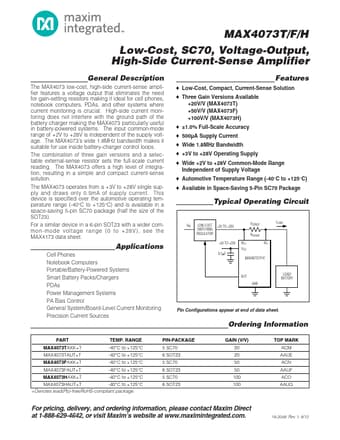

MAX4073T/F/H Low-Cost, SC70, Voltage-Output, High-Side Current-Sense Amplifier General Description The MAX4073 low-cost, high-side current-sense amplifier features a voltage output that eliminates the need for gain-setting resistors making it ideal for cell phones, notebook computers, PDAs, and other systems where current monitoring is crucial. High-side current monitoring does not interfere with the ground path of the battery charger making the MAX4073 particularly useful in battery-powered systems. The input common-mode range of +2V to +28V is independent of the supply voltage. The MAX4073’s wide 1.8MHz bandwidth makes it suitable for use inside battery-charger control loops.
