MAX2309, MAX2306 CDMA IF VGAs and I/Q Demodulators

Maxim Integrated

Description

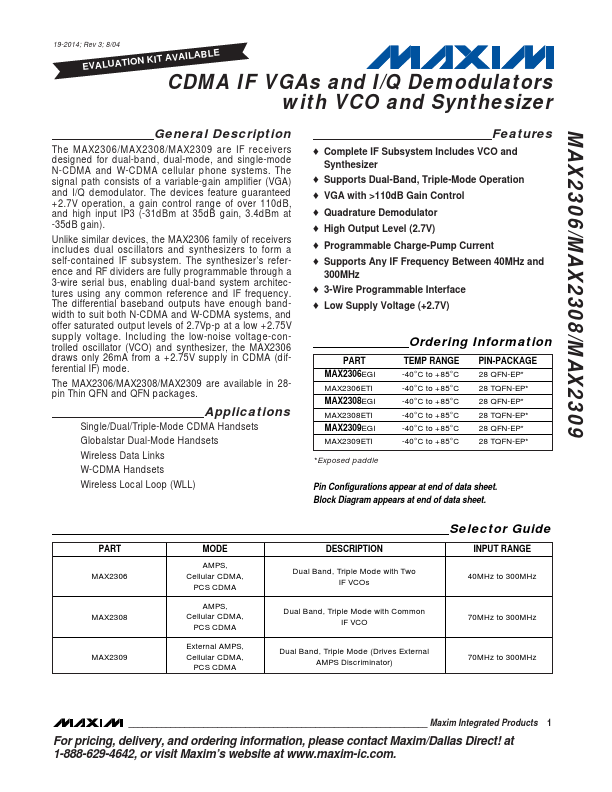

MAX2306/MAX2308/MAX2309 19-2014; Rev 3; 8/04 EVALUATION KIT AVAILABLE CDMA IF VGAs and I/Q Demodulators with VCO and Synthesizer General .
The MAX2306/MAX2308/MAX2309 are IF receivers designed for dual-band, dual-mode, and single-mode N-CDMA and W-CDMA cellular phone systems.

📥 Download Datasheet

MAX2309 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX2309, MAX2306. Please refer to the document for exact specifications by model.

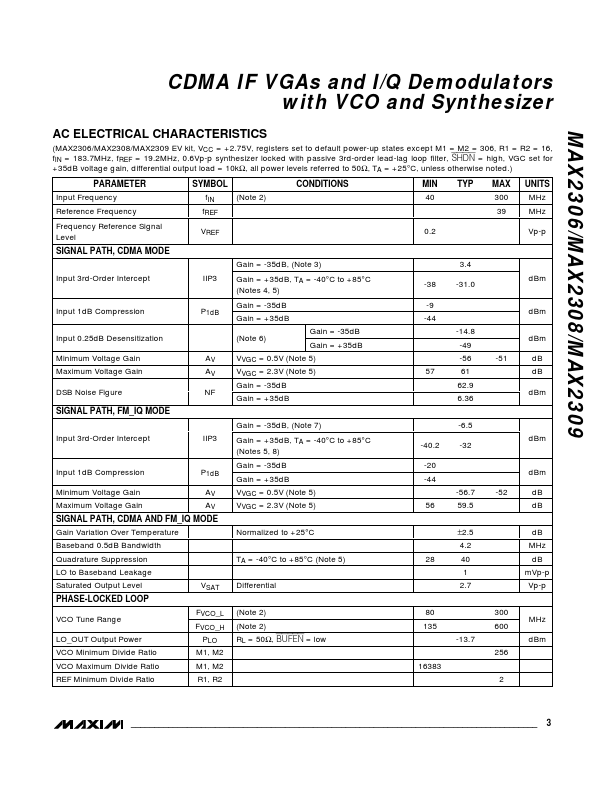

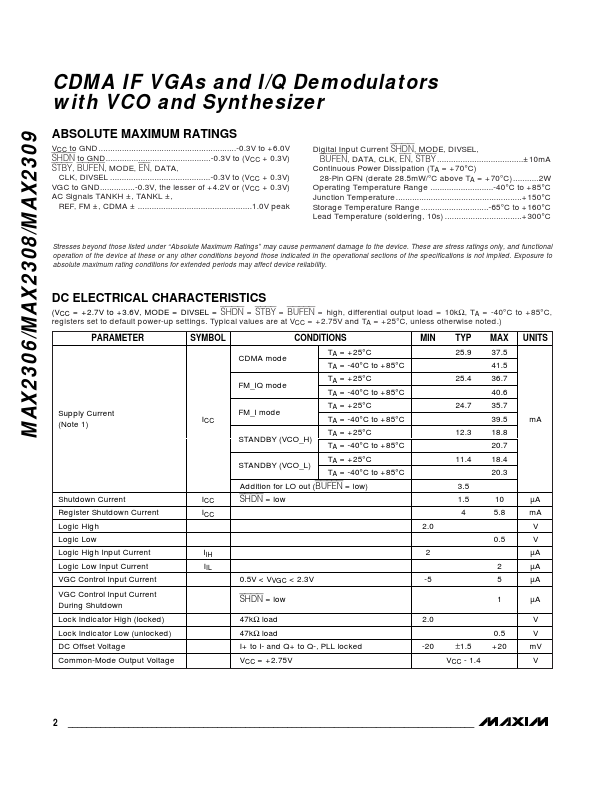

Datasheet Specifications

Part number: MAX2309, MAX2306
Manufacturer: Maxim Integrated ↗
File Size: 188.49 KB
Datasheet: MAX2306-MaximIntegrated.pdf
Description: CDMA IF VGAs and I/Q Demodulators
Note: This datasheet PDF includes multiple part numbers: MAX2309, MAX2306.
Please refer to the document for exact specifications by model.

Features

* Complete IF Subsystem Includes VCO and Synthesizer
* Supports Dual-Band, Triple-Mode Operation
* VGA with >110dB Gain Control
* Quadrature Demodulator
* High Output Level (2.7V)
* Programmable Charge-Pump Current
* Supports Any IF Frequency B
