MAX22191 - Parasitically Powered Digital Input

Maxim Integrated

The MAX22191 by Maxim Integrated is a Parasitically Powered Digital Input. Below is the official datasheet preview.

📥 Download Datasheet

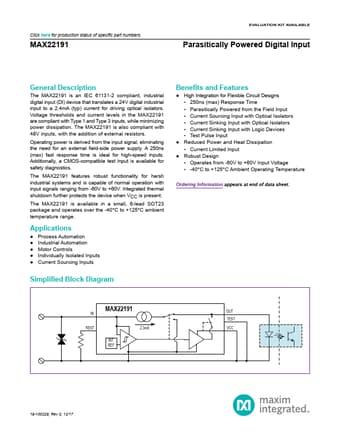

MAX22191 Parasitically Powered Digital Input by Maxim Integrated - Datasheet Preview — Official preview page of the **MAX22191** Parasitically Powered Digital Input datasheet (Maxim Integrated).

Datasheet Details

Part number	MAX22191
Manufacturer	Maxim Integrated
File Size	437.62 KB
Description	Parasitically Powered Digital Input
Datasheet	MAX22191-MaximIntegrated.pdf
Additional preview pages of the MAX22191 datasheet.

MAX22191 Product details

Description

The MAX22191 is an IEC 61131-2 compliant, industrial digital input (DI) device that translates a 24V digital industrial input to a 2.4mA (typ) current for driving optical isolators.

Features

robust functionality for harsh industrial systems and is capable of normal operation with input signals ranging from -60V to +60V. Integrated thermal shutdown furth.
