MAX22164 - 6-Channel Digital Isolators

Download the MAX22164 datasheet PDF (MAX22163 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 6-channel digital isolators.

Description

feature reduces system dissipation, increases reliability, and enables compact designs.

Features

  • three channels transmitting digital signals in one direction and three in opposite; the MAX22164 offers four channels transmitting digital signals in one direction and two in opposite; the MAX22165 provides five channels transmitting digital signals in one direction and one in opposite; the MAX22166 features all six channels transmitting digital signals in one direction. Ordering Information appears at end of data sheet. 19-101240; Rev 4; 02/23 © 2023 Analog Devices, Inc. All rights reserved. T.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX22163-AnalogDevices.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MAX221 - Single RS-232 Transceiver (Maxim)
  • MAX22190 - Octal Industrial Digital Input (Maxim Integrated)
  • MAX22191 - Parasitically Powered Digital Input (Maxim Integrated)
  • MAX22192 - Octal Industrial Digital Input (Maxim Integrated)
  • MAX22195 - Industrial Digital Input (Maxim Integrated)
  • MAX221E - Single RS-232 Transceiver (Maxim Integrated)
  • MAX220 - +5V-Powered Multichannel RS-232 Drivers/Receivers (MAXIM)
  • MAX2202 - RMS Power Detector (Maxim Integrated)
  • MAX2203 - RMS Power Detector (Maxim Integrated Products)
  • MAX2204 - RF Power Detector (Maxim Integrated Products)
Other Datasheets by Analog Devices
  • MAX22163 - 6-Channel Digital Isolators
  • MAX22165 - 6-Channel Digital Isolators
  • MAX22166 - 6-Channel Digital Isolators
  • MAX22194 - Quad Industrial Sink/Source
  • MAX22205 - 7.6A High Current Single H-Bridge
  • MAX22212 - 7.6A High Current Single H-Bridge
  • MAX22213 - 3.8A Quad Half H-Bridge Drivers
  • MAX22216 - Quad Smart Serial-Controlled Solenoid and Motor Driver

Full PDF Text Transcription

Click to expand full text

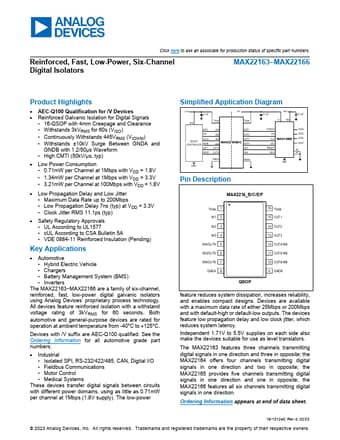

Click here to ask an associate for production status of specific part numbers. Reinforced, Fast, Low-Power, Six-Channel Digital Isolators MAX22163–MAX22166 Product Highlights • AEC-Q100 Qualification for /V Devices • Reinforced Galvanic Isolation for Digital Signals • 16-QSOP with 4mm Creepage and Clearance • Withstands 3kVRMS for 60s (VISO) • Continuously Withstands 445VRMS (VIOWM) • Withstands ±10kV Surge Between GNDA and GNDB with 1.2/50μs Waveform • High CMTI (50kV/μs, typ) • Low Power Consumption • 0.71mW per Channel at 1Mbps with VDD = 1.8V • 1.34mW per Channel at 1Mbps with VDD = 3.3V • 3.21mW per Channel at 100Mbps with VDD = 1.8V • Low Propagation Delay and Low Jitter • Maximum Data Rate up to 200Mbps • Low Propagation Delay 7ns (typ) at VDD = 3.3V • Clock Jitter RMS 11.
