MAX20345 - PMIC

Product Overview

Maxim Integrated

Part number	MAX20345
Manufacturer	Maxim Integrated
File Size	2.38 MB
Description	PMIC
Datasheet	MAX20345 Datasheet

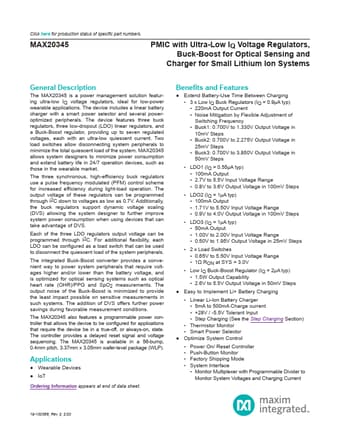

Additional preview pages of the MAX20345 datasheet.

The MAX20345 is a power management solution featuring ultra-low IQ voltage regulators, ideal for low-power wearable applications.

three buck regulators, three low-dropout (LDO) linear regulators, and a Buck-Boost regulator, providing up to seven regulated voltages, each with an ultra-low quiescent current. Two load switches allow disconnecting system peripherals to minimize the total quiescent load of the system. MAX20345 allows system designers to minimize power consumption and extend battery life in 24/7 operation devices, such as those in the wearable market. The three synchronous, high-efficiency buck regulators use a.
