MAX20340 - Bidirectional DC Powerline Communication Management

Product Overview

Maxim Integrated

Part number	MAX20340
Manufacturer	Maxim Integrated
File Size	1.69 MB
Description	Bidirectional DC Powerline Communication Management
Datasheet	MAX20340 Datasheet

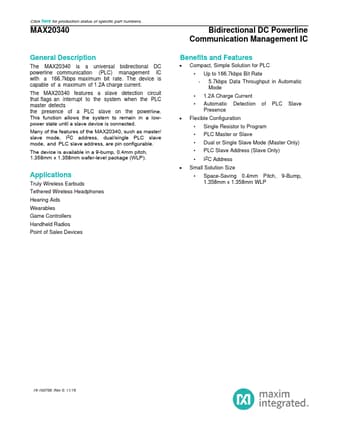

Additional preview pages of the MAX20340 datasheet.

The MAX20340 is a universal bidirectional DC powerline communication (PLC) management IC with a 166.7kbps maximum bit rate.

a slave detection circuit that flags an interrupt to the system when the PLC master detects the presence of a PLC slave on the powerline. This function allows the system to remain in a lowpower state until a slave device is connected. Many of the features of the MAX20340, such as master/ slave mode, I2C address, dual/single PLC slave mode, and PLC slave address, are pin configurable. The device is available in a 9-bump, 0.4mm pitch, 1.358mm x 1.358mm wafer-level package (WLP).
