MAX20090B - High-Brightness LED Controller

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX20090B
Manufacturer	Maxim Integrated
File Size	1.77 MB
Description	High-Brightness LED Controller
Datasheet	MAX20090B Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX20090B, MAX20090. Please refer to the document for exact specifications by model.

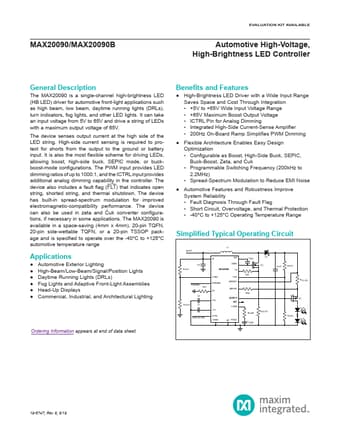

Additional preview pages of the MAX20090B datasheet.

Product details

Description

The MAX20090 is a single-channel high-brightness LED (HB LED) driver for automotive front-light applications such as high beam, low beam, daytime running lights (DRLs), turn indicators, fog lights, and other LED lights.

Features

High-Brightness LED Driver with a Wide Input Range Saves Space and Cost Through Integration.
+5V to +65V Wide Input Voltage Range.
+65V Maximum Boost Output Voltage.
ICTRL Pin for Analog Dimming.
Integrated High-Side Current-Sense Amplifier.
200Hz On-Board Ramp Simplifies PWM Dimming.
Flexible Architecture Enables Easy Design Optimization.
Configurable as Boost, High-Side Buck, SEPIC, Buck-Boost, Zeta, and Ćuk.
Programmabl.
