MAX20031 - Front-End Power Supply

Download the MAX20031 datasheet PDF. This datasheet also covers the MAX20030 variant, as both devices belong to the same front-end power supply family and are provided as variant models within a single manufacturer datasheet.

Description

The MAX20030/MAX20031 ICs are automotive 2.2MHz dual-synchronous step-down controllers with preboost controller and low-IQ LDO.

The preboost controller enables VOUT1 and VOUT2 to stay in regulation during coldcrank operation all the way down to a battery input of 2V.

Features

  • include cycleby-cycle current limit and thermal shutdown. The MAX20030/MAX20031 are specified for operation over the -40°C to +125°C automotive temperature range.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MAX20030-AnalogDevices.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MAX2003 NiCd/NiMH Battery Fast-Charge Controllers Maxim
MAX2003A NiCd/NiMH Battery Fast-Charge Controllers Maxim Integrated
MAX200 RS-232 Transceivers Maxim
MAX20002 2A/3A Fully Integrated Step-Down Converters Maxim Integrated
MAX20003 2A/3A Fully Integrated Step-Down Converters Maxim Integrated

Other Datasheets by Analog Devices

Part Number Description
MAX20030 Front-End Power Supply
MAX20011E Automotive Single 8A Step-Down Converters
MAX20011F Automotive Single 12A Step-Down Converters
MAX20011G Automotive Single 16A Step-Down Converters
MAX20042F Automotive Hi-Speed USB 2.0 Protectors

Full PDF Text Transcription

Click to expand full text

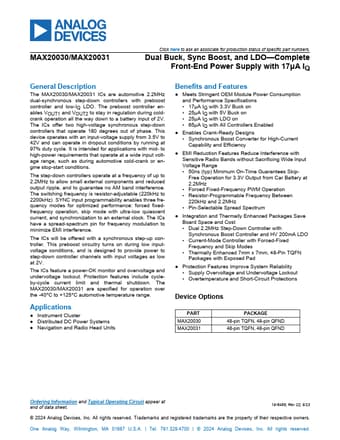

MAX20030/MAX20031 Click here to ask an associate for production status of specific part numbers. Dual Buck, Sync Boost, and LDO—Complete Front-End Power Supply with 17μA IQ General Description The MAX20030/MAX20031 ICs are automotive 2.2MHz dual-synchronous step-down controllers with preboost controller and low-IQ LDO. The preboost controller enables VOUT1 and VOUT2 to stay in regulation during coldcrank operation all the way down to a battery input of 2V. The ICs offer two high-voltage synchronous step-down controllers that operate 180 degrees out of phase. This device operates with an input-voltage supply from 3.5V to 42V and can operate in dropout conditions by running at 97% duty cycle.
